The Dragonfire Launch Pad
Simple, Safe, Reliable and Compact

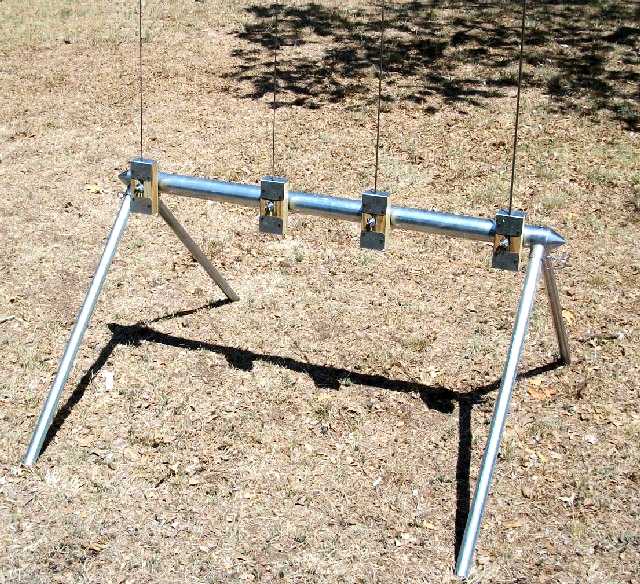

Dragonfire 4 Banger shown(launch rods not included) Also available in 6 and 8 pad versions

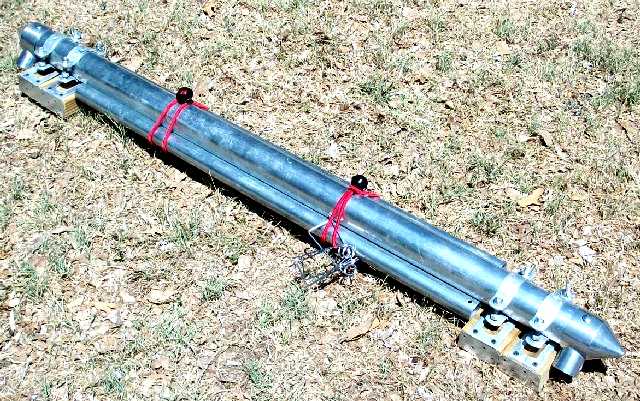

Dragonfire 4 Banger packed up (Red bungies included)

Dragonfire 4 Banger (4 positions) Launch Pad  with Steel/Zinc Hardware  - $220 each
Dragonfire 4 Banger (4 positions) Launch Pad with Stainless Steel Hardware -  $250 each
Dragonfire 6 Pack (6 positions) Launch Pad with Steel/Zinc Hardware - $250 each
Dragonfire 6 Pack (6 positions) Launch Pad with Stainless Steel Hardware - $300 each
Dragonfire 8 Ball (8 positions) Launch Pad with Steel/Zinc hardware - $300 each
Dragonfire 8 Ball (8 positions) Launch Pad with Stainless Steel hardware - $375 each

Free Shipping via UPS Ground is standard
Launch Pads will be shipped within 7 days of order

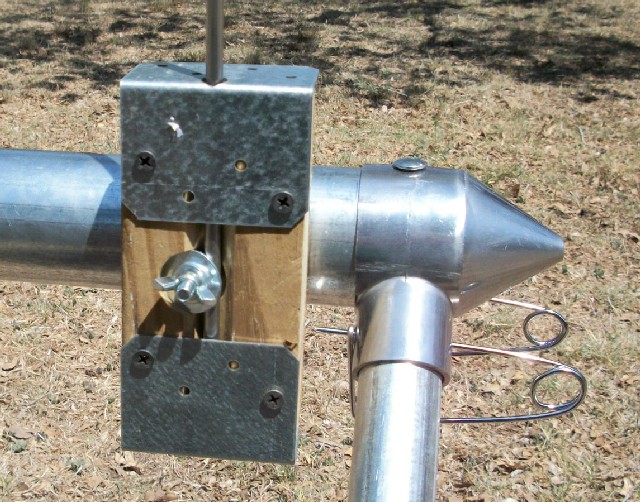

Closeup of Pad Head front with 1/4" launch rod (not included) installed

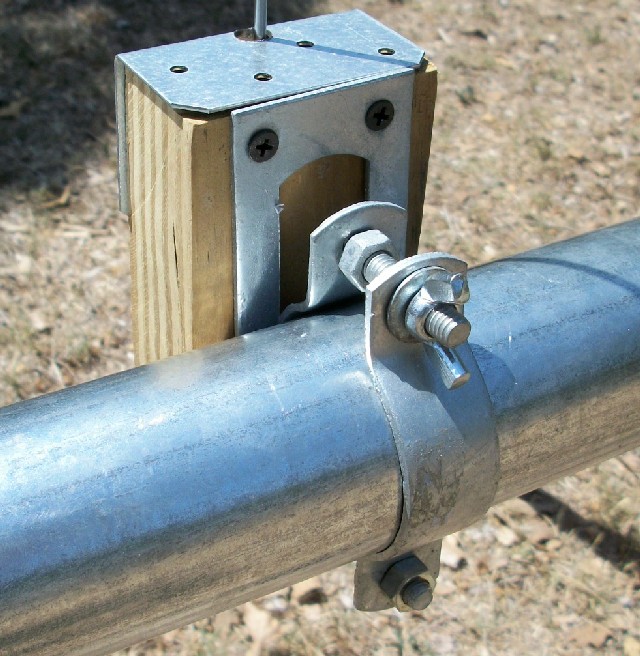

Rear view of Pad Head

These launch pads are ideal for rocket clubs, TARC teams, Junior ROTC corps, and Scout troops that need a durable and reliable launch system.  They will provide years of safe, dependable service.  They are the perfect complement to the Forte' Launch Controller
Takes just 5 minutes to set up or tear down, no tools are required.
Made from heavy galvanized steel pipes and fittings.
Weather-proof and built to last for years.
Accomodates launch rods from 1/8" to 1/4" in diameter (not included)
Each pad can support a 15 pound rocket
Wide stance, won't tip over even in high winds
Blast deflectors should be used but are not included because they can be obtained locally more cheaply than it costs to ship them.

4 Banger specifications
  4' x 4' foot print, 29" high,  4 Launch Pads
When disassembled it takes up only 6" x 6" x 52" (1.08 cubic feet) and weighs 20 pounds

6 Pack specifications
6' x 4' foot print, 29" high, 6 Launch Pads
When disassembled it takes up only 6" x 6" x 64" (1.33 cubic feet) and weighs 25 pounds

8 Ball specifications
7.5' x 4' foot print, 29" high, 8 Launch Pads
When disassembled it takes up only 6" x 6" x 92" (1.9 cubic feet) and weighs 35 pounds

Steel/Zinc vs. Stainless Steel?
These launch pads are made from highly weather-resistant materials.  Steel/Zinc hardware is subject to some corrosion when exposed to rocket exhaust residues over a long period of time.  This means the moving parts need to be cleaned and lubricated periodically to maintain smooth operation.  Stainless Steel hardware greatly reduces the need for periodic maintenance.
