3rd Place in DESCON 14
3 Stage Cluster Cone
Rocket

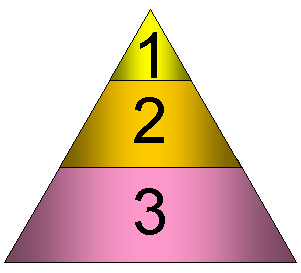

This is a 3 stage, Clustered Cone rocket with 5 motors in it's full power configuration
Stage 1 - Top - 13mm A10-PT
Stage 2 - Middle - 18mm C6-0
Stage 3 - Bottom - 3 x 24mm inline motor cluster, D12-0 center, 2 x D11-P outboard

The rocket is 8" high and 9.25" in diameter at the base. It is constructed entirely out of cardstock and foambacked posterboard using white glue. All 3 stages use ultra reliable  aerobrake recovery.
  Stage 1
  Stage 2
Stage 3
Cutaway Views
Parts
Parts - Stage 1, top leftmost, Stage 2, the rest of the top row, Stage 3, entire bottom row

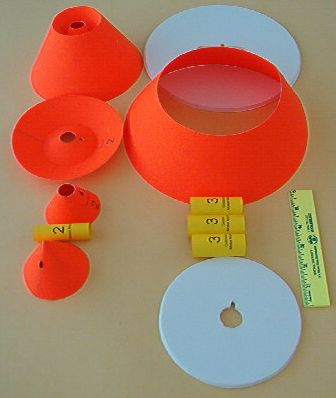

 Parts
Another view of the parts - Orange = posterboard, Yellow = Cardstock, White = Foam backed Posterboard
Material List
Description
Source
Quantity
Cost
Flourescent Posterboard
Hobby Lobby
1 Sheet
$0.79
Foam-backed Posterboard
Hobby Lobby
1 Sheet
$1.99
Cardstock 8.5" x 11"
Walmart
2 Sheets
$0.07 ($4.97/150)


Total:
$2.89

Cardstock and foamboard patterns (descon14.pdf)

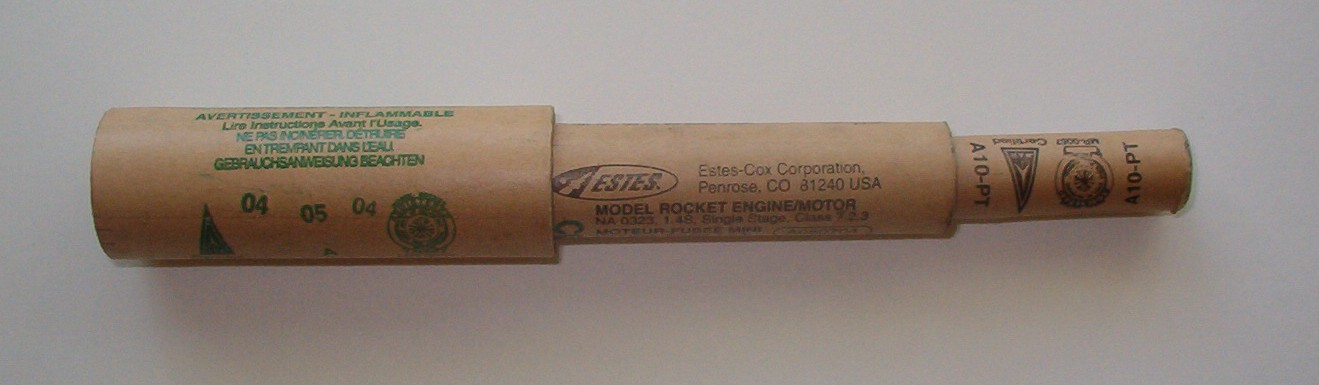

Motors stacked for insertion into the rocket
The motors are stacked for insertion into the rocket. (Click on the picture for more detail.
  The nozzle end of the motors are inserted about 0.25" into the forward end of the next motor.
The motors are inserted into the rocket bottom stage first and then second stage and top stage in turn.
Only the top stage(A10-PT) needs to be friction fitted, the others are held in place by the top stage and aerodynamic forces.

2 versions were built.  The first is a 2 stage version made from 65 lb yellow cardstock and printed on a laser printer. The seconds version is the full 3 stage, cluster  made from Orange "Royal" brand posterboard shrouds, yellow cardstock motor mounts and white foam backed posterboard.
Flight Reports
Date
Configuration
Motors
Results
August 21, 2004
2 Stage
Stage 1 - A10-PT
Stage 2 - B6-0
Good straight flight in light winds, good recovery
August 21, 2004
3 Stage cluster
Stage 1 - A10-PT
Stage 2 - B6-0
Stage 3 - D12-0, 2 x D11-P
This is the full power configuration.  Good intial Stage 3 boost on 3 "D" motors.  Stage 2 ignition was good but Stage 1 separated from Stage 2 in the middle of its boost.  Stage 2 continued to fly staight without Stage 1. All stages returned safely  because of the ultra-reliable aerobrake recovery method used for all 3 stages.
August 21, 2004
2 Stage
Stage 1 - A10-PT
Stage 2 - C6-0
Good flight with slight weather cocking in a moderate wind, good recovery

Flight Photos
First Flight
Flight 1
2 stage version waiting on the pad
Flight 1

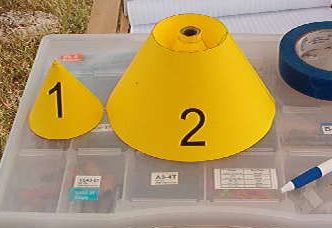

2 stage version after flight
Flight 1
2 stage version Bottom after flight with some minor scorching on the bottom of Stage 1
Second Flight
Flight 2

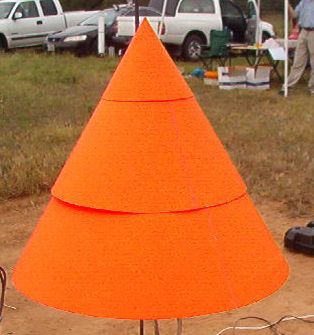

3 Stage, cluster version waiting on pad
Flight 2

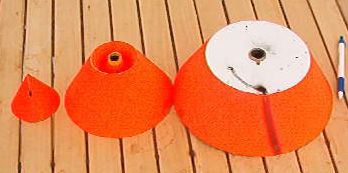

3 stage, cluster version after flight with some minor scorching on the top of Stage 3
Flight 2
3rd Stage landing
Third Flight
Flight 3
3 stage version being flown in 2 stage configuration using A10-PT & C6-0 motors
